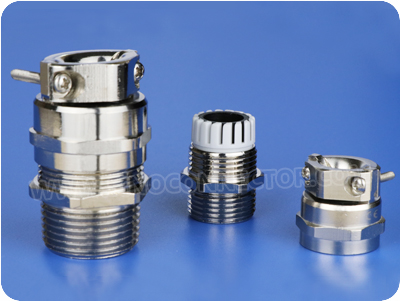

Brass Cable Glands with Strain Relief Clamp (NPT Thread)

Product details

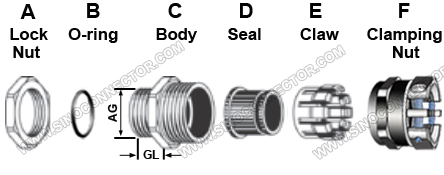

■ Characteristics:
● Material: Clamping Nut, Locknut and Body are made from Nickel-plated Brass.
● Claw: Made from UL-certified nylon 66, 94V-2 (94V-0 optional).
● Seal & O-ring: Made from oil resistant NBR (weather resistant EPDM,Natural Rubber or Silicone optional).
● Thread System: According to the standard ANSI/ASME B1.20.1.
● Standard Colors: Metallic silver.
● Protection Degree: Up to IP68 (assembled together with the O-ring within the cable range).
● Operation Temperature: Static: -40℃ to 100℃, short-term: 120℃. Dynamic: -20℃ to 80℃, short-term: 100℃.
● How to use: Mount gland to pre-drilled panel hole, use locknut to fix gland on board, insert the cables in the seal and then tighten up the clamping nut to hold cables in position, finally tighten the two screws.
■ Functions & Applications:
Metal cable glands with strain relief clamp are designed to securely grip the cables to avoid looseness, slip and damage due to traction. With their outstanding ability in mechanical impact resistance, pullout resistance, weather resistance and high security and stability, they can meet the electrical requirements in a variety of outdoor environments. The metal cable glands with strain relief clamp are widely used for connecting and fastening cables on electrical equipments, moving machineries, telecommunications, network communication, automatic control, power supplies, switches, motors, distribution boxes, solar PV modules, Inverters, lightings, displays, traffics, signals, surveillance cameras, plant engineerings, meters and instruments, etc.
■ Specifications:

Thread	Cable Range		AG (mm)	Panel Mounting Hole (mm)	GL (mm)	H (mm)	Spanner (mm)
Thread	Min.(mm)	Max.(mm)	AG (mm)	Panel Mounting Hole (mm)	GL (mm)	H (mm)	Spanner (mm)
NPT1/4”	3	6.5	13.7	13.7-14	8	25	14/15
NPT1/4”	4	8	13.7	13.7-14	8	27	17
NPT3/8”	4	8	17	17-17.3	15	27	17/18
NPT3/8”	5	10	17	17-17.3	15	29	20
NPT1/2”	6	12	21.2	21.2-21.5	13	31	22
NPT1/2”	10	14	21.2	21.2-21.5	13	31	24
NPT3/4”	13	18	26.2	26.2-26.5	15	37	30
NPT1”	18	25	33.3	33.3-33.6	16	42	40
NPT1-1/4”	18	25	42	42-42.3	18	42	40/44
NPT1-1/4”	22	32	42	42-42.3	18	48	50
NPT1-1/2”	22	32	48	48-48.3	18	48	50
NPT1-1/2”	32	38	48	48-48.3	18	50	57
NPT2”	37	44	60	60-60.3	18	51	64
