Divided Type Elbow Cable Glands (Metric Thread)

Product details



Characteristics:

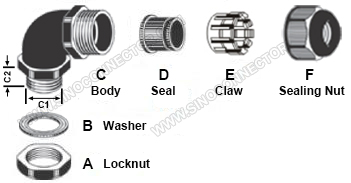

Material: Sealing Nut, Locknut & Body are made from UL-certified nylon 66, 94V-2 (contact us for 94V-0).
Seal & Washer: Made from weather resistant EPDM rubber (available in high temperature-resistant EPDM rubber, acid or alkali-resistant EPDM, etc).
Thread System: According to the European standard EN60423.
Standard Colors: Grey RAL7035, black RAL9005, other colors are also available on request.
Protection Degree: Up to IP68 (assembled together with Washer within the cable range).
Operation Temperature: Static: -40℃ to 100℃, short-term: 120℃. Dynamic: -20℃ to 80℃, short-term: 100℃.
How to use: Mount gland to pre-drilled panel hole, use locknut to fix gland on board, insert the cables in the seal and then tighten up the sealing nut to hold cables in position.
Applications:
The claws and seals of unique design, sealing nut with flange has a“click”sound and re-open, can hold cables firmly and provide a wider cable range, 90°design to protect cables from breakage. Widely used for fixing cables to provide effective protection against dust, water, oil, acid, alkaline, alcohol, solvents in the fields of electrical and electronic technologies, machineries, telecommunications, wireless networking ODUs, power supplies, switches, junction boxes, solar PV modules, Inverters, lightings, displays, traffics, signals, surveillance cameras, plant engineerings, installation and other instruments, etc. Innovative design for the Seal and Claw, wide clamping range, strong resistence against the tensile strength and thus it can protect cables effectively.
Specifications:

Thread

Cable Range

C1
(mm)

Panel Mounting Hole
(mm)

C2
(mm)

Spanner A/F
(mm)

Packing
(pcs)

Min. (mm)

Max. (mm)

M16*1.5

4

7

16

16.2

10

22/22

50

6

10

16

10

22/22

50

M20*1.5

6

11

20

20.2

15

27/27

50

9

14

20

15

27/27

50

M25*1.5

10

16

25

25.2

15

33/33

50

13

18

25

15

33/33

50

M32*1.5

15

22

32

32.2

15

41/42

20

18

25

32

15

41/42

20

M40*1.5

20

26

40

40.2

20

50/52

10

24

31

40

20

50/52

10
