Divided Type Plastic Cable Glands (PG Thread)

Product details

■ Characteristics:

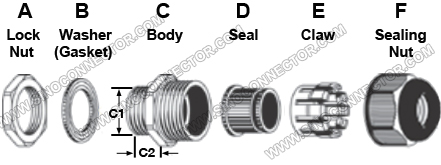

● Material: UL-certified nylon 66, flammability 94V-2 for A, C, E, F parts (contact us for flammability 94V-0 material).
● Seal & Washer: Weatherproof and aging resistant EPDM rubber for B, D parts.
● Thread System: According to German standard DIN40430.
● Standard Colors: Grey RAL7035, black RAL9005 (available in grey RAL7005, grey RAL7001, blue RAL5012, orange RAL6018, green RAL2004, etc).
● Protection Degree: Up to IP68 (assembled together with the Washer within the cable range).
● Operation Temperature: Static: -40℃ to 100℃, short-term: 120℃. Dynamic: -20℃ to 80℃, short-term: 100℃.
● How to use: Mount gland to pre-drilled panel hole, use locknut to fix gland on board, insert the cables in the seal and then tighten up the sealing nut to hold cables in position.
■ Applications:
Exquisite and beautiful appearance design, the seals and claws of unique design provides strong strain relief and wider cable range, sealing nut with anti-vibration lock has a "click" sound and re-open, it prevents the cable from coming loose. Widely used for securing cables to provide effective protection against dust, water, oil, acid, alkaline, alcohol, solvents in the fields of electrical and electronic technologies, machineries, telecommunications, wireless networking ODUs, power supplies, switches, junction boxes, solar PV modules, Inverters, lightings, displays, traffics, signals, surveillance cameras, plant engineerings, installation and other instruments, etc.
■ Specifications:

Thread	Cable Range		AG (mm)	Panel Mounting Hole (mm)	GL (mm)	Spanner A/F (mm)	Packing (pcs/bag)
Thread	Min. (mm)	Max. (mm)	AG (mm)	Panel Mounting Hole (mm)	GL (mm)	Spanner A/F (mm)	Packing (pcs/bag)
PG7	3	5.5	12.5	12.5-12.8	8	17/19	50
PG7	4	8	12.5	12.5-12.8	8	17/19	50
PG9	3	5.5	15.2	15.2-15.5	8.2	22/19	50
PG9	4	8	15.2	15.2-15.5	8.2	22/19	50
PG11	4	7	18.6	18.6-18.9	10	24/22	50
PG11	5	10	18.6	18.6-18.9	10	24/22	50
PG13.5	5	8.8	20.4	20.4-20.7	10	27/24	50
PG13.5	6	12.5	20.4	20.4-20.7	10	27/24	50
PG16	6	11	22.5	22.5-22.8	10.8	30/27	50
PG16	9	14	22.5	22.5-22.8	10.8	30/27	50
PG21	10	16	28.3	28.3-28.6	12	36/33	50
PG21	13	18	28.3	28.3-28.6	12	36/33	50
PG29	15	22	37	37-37.3	12	46/41	20
PG29	18	25	37	37-37.3	12	46/41	20
PG36	20	26	47	47-47.3	14	57/52	10
PG36	26	31	47	47-47.3	14	57/52	10
PG42	25	33	54	54-54.3	15	64/62	10
PG42	31	41	54	54-54.3	15	64/62	10
PG48	41	51	59.3	59.3-59.6	18.2	70/75	10
