EMC Metal Cable Glands with Pull Relief Clamp (Short Metric Thread)

Product details


Characteristics:
Material: Clamping Nut, Locknut and Body are made from Nickel-plated Brass.
Claw: Made from UL-certified nylon 66, 94V-2 (94V-0 optional).
Seal & O-ring: Made from oil resistant NBR (weather resistant EPDM,Natural Rubber or Silicone optional).
Thread System: According to the European standard EN60423.
Standard Colors: Metallic silver.
Protection Degree: Up to IP68 (assembled together with the O-ring within the cable range).
Operation Temperature: Static: -40℃ to 100℃, short-term: 120℃. Dynamic: -20℃ to 80℃, short-term: 100℃.
How to use: Mount gland to pre-drilled panel hole, use locknut to fix gland on board, insert the cables in the seal and then tighten up the clamping nut to hold cables in position, finally tighten the two screws.
Functions & Applications:

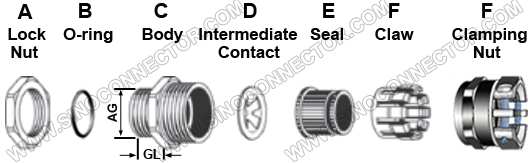

Equipped with internal metal Intermediate Contact Disc (D) which can contact the screen of shielded cable to provide 360 degree earthing, EMC Metal Glands with Traction Relief Clamp help to achieve an optimum low-resistance EMC bonding and to be attached to withstand the interference of electromagnetic radiation from cables carrying high levels of harmonics. Due to this metal earthing contact disc, the glands can provide continuous EMC protection against electromagnetic interference. EMC Metal Glands with Traction Relief Clamp are designed to securely grip the cables to avoid looseness and slip due to traction. With its outstanding ability in mechanical impact resistance, pullout resistance, weather resistance and high security and stability, they can meet the electrical requirements in a variety of outdoor environments. Such glands are widely used for connecting and fastening cables on electrical equipments, moving machineries, telecommunications, network communication, automatic control, power supplies, switches, motors, distribution boxes, solar PV modules, Inverters, lightings, displays, traffics, signals, surveillance cameras, plant engineerings, meters and instruments, etc.
Specifications:

Thread

Cable Range

AG
(mm)

Panel Mounting Hole
(mm)

GL
(mm)

H
(mm)

Spanner
(mm)

Min. (mm)

Max. (mm)

M12*1.5

3

6.5

12

12.2

5

25

14

M12*1.5

4

8

12

12.2

6

27

17

M14*1.5

4

8

14

14.2

6

27

17

M16*1.5

4

8

16

16.2

6

27

17

M16*1.5

5

10

16

16.2

6

29

20

M18*1.5

5

10

18

18.2

6

29

20

M20*1.5

6

12

20

20.2

6.5

31

22

M20*1.5

10

14

20

20.2

6.5

31

24

M22*1.5

10

14

22

22.2

6.5

31

24

M24*1.5

10

14

24

24.2

6.5

31

24/27

M25*1.5

13

18

25

25.2

7

37

30

M27*1.5

13

18

27

27,2

7

37

30

M28*1.5

13

18

28

28.2

7

37

30

M30*1.5

13

18

30

30.2

8

37

30/32

M32*1.5

18

25

32

32.2

8

42

40

M33*1.5

18

25

33

33.2

8

42

40

M36*1.5

18

25

36

36.2

8

42

40

M37*1.5

18

25

37

37.2

8

42

40

M40*1.5

22

32

40

40.2

8

48

50

M42*1.5

22

32

42

42.2

8

48

50

M47*1.5

22

32

47

47.2

8

48

50

M48*1.5

22

32

48

48.2

8

48

50/52

M50*1.5

32

38

50

50.2

9

50

57

M54*1.5

32

38

54

54.2

9

50

57

M56*1.5

32

38

56

56.2

9

50

57/59

M60*1.5

37

44

60

60.2

10

51

64

M63*1.5

37

44

63

63.2

10

51

64/68

M64*1.5

37

44

64

64.2

10

51

64/68
