■ Characteristics:
● Material: Made from UL-certified nylon 6, 94V-2 (contact us for 94V-0).
● Thread System: According to DIN 40430 and EN 60423.
● Standard Colors: Grey RAL7035, black RAL9005.
● Operation Temperature: Static: -40℃ to 100℃, short-term: 120℃. Dynamic: -20℃ to 80℃, short-term: 100℃.
● Features: Used for converting PG male thread to PG female thread and Metric male thread to Metric female thread.
■ Specifications:
|

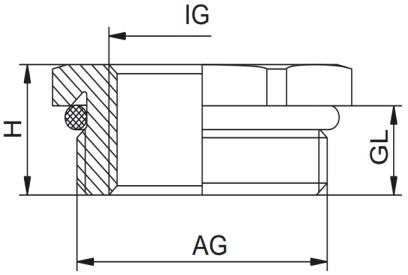

Thread |
AG |
IG |
GL |
H |
Spanner |
Packing (pcs/bag) |
|
PG9 |
15.2 |
PG7 |
8 |
20.5 |
19 |
100 |
|
PG11 |
18.6 |
PG9 |
8 |
22.5 |
22 |
100 |
|
PG13.5 |
20.4 |
PG9 |
9 |
24 |
24 |
100 |
|
PG13.5 |
20.4 |
PG11 |
9 |
24 |
24 |
100 |
|
PG16 |
22.5 |
PG11 |
10 |
16 |
27 |
100 |
|
PG16 |
22.5 |
PG13.5 |
10 |
16 |
27 |
100 |
|
PG21 |
28.3 |
PG16 |
11 |
16 |
33 |
50 |
|
PG29 |
37 |
PG21 |
12 |
18 |
42 |
50 |
|
PG36 |
47 |
PG29 |
13 |
24 |
52 |
20 |
|
PG48 |
59.3 |
PG42 |
14 |
24 |
65 |
10 |
|
Thread |
AG |
IG |
GL |
H |
Spanner |
Packing |
|
M16 |
16 |
M12*1.5 |
8 |
12 |
19 |
100 |
|
M20 |
20 |
M16*1.5 |
9 |
13 |
24 |
100 |
|
M25 |
25 |
M16*1.5 |
11 |
16 |
30 |
100 |
|
M25 |
25 |
M18*1.5 |
11 |
16 |
30 |
100 |
|
M25 |
25 |
M20*1.5 |
11 |
16 |
30 |
100 |
|
M27 |
27 |
M16*1.5 |
11 |
16 |
36 |
100 |
|
M30 |
30 |
M16*1.5 |
11 |
16 |
36 |
50 |
|
M32 |
32 |
M20*1.5 |
11 |
16 |
36 |
50 |
|
M32 |
32 |
M24*1.5 |
11 |
16 |
36 |
50 |
|
M32 |
32 |
M25*1.5 |
11 |
16 |
36 |
50 |
|
M32 |
32 |
M27*1.5 |
11 |
16 |
36 |
50 |
|
M36 |
36 |
M32*1.5 |
13 |
19 |
40 |
50 |
|
M40 |
40 |
M25*1.5 |
13 |
19 |
45 |
50 |
|
M40 |
40 |
M30*1.5 |
13 |
19 |
45 |
50 |
|
M40 |
40 |
M32*1.5 |
13 |
19 |
45 |
50 |
|
M50 |
50 |
M32*1.5 |
14 |
22 |
55 |
20 |
|
M50 |
50 |
M40*1.5 |
14 |
22 |
55 |
20 |
|
M63 |
63 |
M40*1.5 |
15 |
24 |
68 |
10 |
|
M63 |
63 |
M50*1.5 |
15 |
24 |
68 |
10 |
