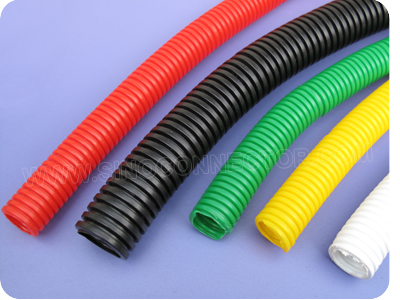

High Temperature Resistant PA Flexible Conduits (UL-94 HB)

Product details

■ Characteristics:
● Material: Polyamide 6 (UL-94 HB).
● Standard Colors: Dark-grey RAL7037, black RAL9005. Other colors available on request.
● Operation Temperature: -40℃ to +180℃.
● Features: Softess and toughness, excellent bending performance, abrasion resistance, excellent insulation, UV & weather resistance, oil, weak acid and alkali resistance, resistance to chemicals & solvents, etc.
■ Applications:
Used in the high temperature resistant fields of automatic equipments, machineries, industrial equipments, motors, vehicles, etc. It can protect cables from abrasion and provide insulation to the wires and cables.
■ Specifications:

Sizes	Inner Diameter (d) (mm)	Outer Diameter (D) (mm)	Bend Radii (mm)	Packing (meters / roll)
AD7	4.5	7	12	200
AD10.0	6.5	10.0	14	100
AD11.6	8	11.6	17	100
AD13.0	9.5	13.0	20	100
AD15.8	12.0	15.8	27	100
AD18.5	14.3	18.5	35	100
AD21.2	17.0	21.2	40	100
AD25.0	21.0	25.5	43	100
AD28.5	23.0	28.5	47	50
AD34.5	29.0	34.5	58	50
AD42.5	36.0	42.5	69	25
AD54.5	48.0	54.5	83	10
AD68	56.3	68	130	10
AD74	63	74	135	10
AD80	67	80	170	10
AD88	76	88	180	10
AD108	76	88	225	10
