Liquid Tight Cable Gland (Short PG Thread)

Product details

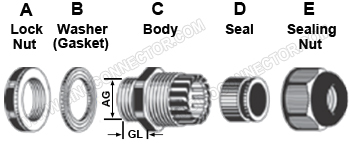

Characteristics:
Material: Sealing Nut, Locknut & Body are made from UL-certified nylon 66, 94V-2 (94V-0 optional).
Seal & Washer: Made from oil resistant NBR (weather resistant EPDM, Natural Rubber or Silicone optional).
Thread System: According to the European standard EN60423.
Standard Colors: Grey RAL7035,black RAL9005 (other colors like grey RAL7005, grey RAL7001, blue RAL5012, orange RAL6018, green RAL2004 are also available on request).
Protection Degree: Up to IP68 (assembled together with Washer within the cable range).
Operation Temperature: Static: -40℃ to 100℃, short-term: 120℃. Dynamic: -20℃ to 80℃, short-term: 100℃.
How to use: Mount gland to pre-drilled panel hole, use locknut to fix gland on board, insert the cables in the seal and then tighten up the sealing nut to hold cables in position.
Applications:
Used for fixing cables to provide effective protection against dust, water, oil, acid, alkaline, alcohol, solvents in the fields of electrical and electronic technologies, machineries, telecommunications, wireless networking ODUs, power supplies, switches, junction boxes, solar PV modules, Inverters, lightings, displays, traffics, signals, surveillance cameras, plant engineerings, installation and other instruments, etc. Innovative design for the Seal and Claw, wide clamping range, strong resistance against the tensile strength and thus it can protect cables effectively.
Specifications:

Thread

Cable Range

AG
(mm)

Panel Mounting Hole
(mm)

GL
(mm)

H
(mm)

Spanner
(mm)

Min.(mm)

Max.(mm)

PG7

3

6.5

12

12.2

8

22

16

PG7

2

5

12

12.2

8

22

16

PG9

4

8

16

16.2

8

26

19

PG9

2

6

16

16.2

8

26

19

PG11

5

10

18

18.2

8

27

22

PG11

3

7

18

18.2

8

27

22

PG13.5

6

12

20

20.2

9

28

24

PG13.5

5

9

20

20.2

9

28

24

PG16

10

14

22

22.2

10

30

27

PG16

7

12

22

22.2

10

30

27

PG19

12

15

24

24.2

10

30

27/28

PG19

10

12

24

24.2

10

30

27/28

PG21

13

18

28

28.2

10

35

33

PG21

9

16

28

28.2

10

35

33

PG25

16

21

30

30.2

11

34

35/36

PG25

13

18

30

30.2

11

34

35/36

PG29

18

25

37

37.2

12

40

41/42

PG29

13

20

37

37.2

12

40

41/42

PG36

22

32

47

47.2

14

48

52/53

PG36

20

26

47

47.2

14

48

52/53

PG42

32

38

54

54.2

14

49

60/61

PG42

25

31

54

54.2

14

49

60/61

PG48

37

44

59

59.2

14

50

64/65

PG48

29

35

59

59.2

14

50

64/65

PG63

42

50

70

70.2

27

60

72
