Metal Threaded Blind Plugs (Metric Thread)

Product details

■ Characteristics:
● Material: Made from Nickel-plated Brass.
● Thread System: According to the European standard EN60423.
● Standard Colors: Metallic silver.
● Protection Degree: Up to IP54.
● Protection Degree: Up to IP68 (only if assembled with O-ring on the very plane surface).
● Operation Temperature: Static: -40℃ to 100℃, short-term: 120℃. Dynamic: -20℃ to 80℃, short-term: 100℃.
■ Applications:
For spare holes. Mainly used where existing threaded holes need to be closed to protect against water, dust, etc, but assembled with locknuts for closing the unthreaded holes.
■ Specifications:

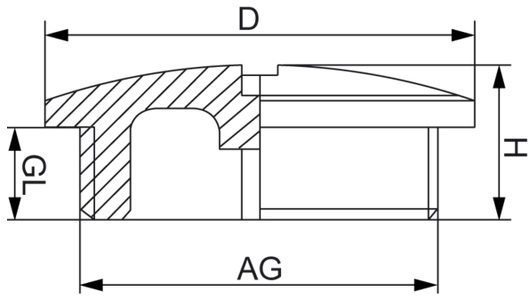

Thread	AG (mm)	Panel Mounting Hole (mm)	GL (mm)	H (mm)	D (mm)
M12*1.5	12	12.2	5	8	14
M14*1.5	14	14.2	6	9	16
M16*1.5	16	16.2	6	9	18
M18*1.5	18	18.2	6	9	20
M20*1.5	20	20.2	6.5	9.5	22
M22*1.5	22	22.2	6.5	9.5	24
M24*1.5	24	24.2	6.5	11	26
M25*1.5	25	25.2	7	11	28
M27*1.5	27	27.2	7	11	30
M30*1.5	30	30.2	7	11	33
M32*1.5	32	32.2	8	12	35
M33*1.5	33	33.2	8	12	36
M36*1.5	36	36.2	8	12	40
M40*1.5	40	40.2	9	13	44
M42*1.5	42	42.2	9	13	46
M44*1.5	44	44.2	9	13	48
M48*1.5	48	48.2	9	14	52
M50*1.5	50	50.2	9	15	54
M56*1.5	56	56.2	9	15	60
M63*1.5	63	63.2	10	16	67
M64*1.5	64	64.2	10	16	68
M72*2	72	72.2	12	19	77
M75*2	75	75.2	12	19	80
M76*2	76	76.2	12	19	81
M80*2	80	80.2	14	22	88
M90*2	90	90.2	15	23	100
M100*2	100	100.2	16	24	110
M110*2	110	110.2	18	26.5	120
