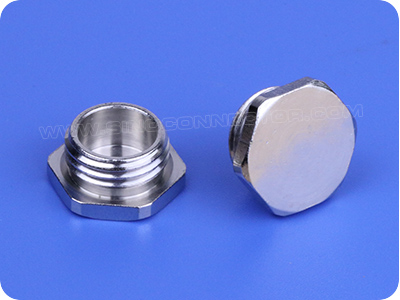

Metal Threaded Hex Plugs (Metric Thread)

Product details



Characteristics:
Material: Made from Nickel-plated Brass.
Thread System: According to the European standard EN60423.
Standard Colors: Metallic silver.
Protection Degree: Up to IP54.
Protection Degree: Up to IP68 (only if assembled with O-ring on the very plane surface).
Operation Temperature: Static: -40℃ to 100℃, short-term: 120℃. Dynamic: -20℃ to 80℃, short-term: 100℃.
Applications:
Use hexagon spanner to tighten it to seal the spare holes.
Specifications:

Thread

AG
(mm)

Panel Mounting Hole
(mm)

GL
(mm)

H
(mm)

Spanner
(mm)

M12*1.5

12

12.2

6.5

9.5

14

M14*1.5

14

14.2

6.5

9.5

17

M16*1.5

16

16.2

6.5

9.5

19

M18*1.5

18

18.2

6.5

9.5

20

M20*1.5

20

20.2

6.5

10

22

M22*1.5

22

22.2

6.5

10

24

M24*1.5

24

24.2

6.5

10

27

M25*1.5

25

25.2

7

10.5

30

M27*1.5

27

27.2

7

10.5

30

M30*1.5

30

30.2

7

11

32

M32*1.5

32

32.2

8

12.5

41

M33*1.5

33

33.2

8

12.5

36

M36*1.5

36

36.2

8

12.5

40

M40*1.5

40

40.2

8

13

46

M42*1.5

42

42.2

8

13

45

M44*1.5

44

44.2

9

14

50

M48*1.5

48

48.2

9

14

50

M50*1.5

50

50.2

9

15

55

M56*1.5

56

56.2

9

15

60

M60*1.5

60

60.2

10

15

65

M63*1.5

63

63.2

10

16.5

70

M64*1.5

64

64.2

10

15.5

67

M72*2

72

72.2

10

17

75

M80*2

80

80.2

15

23

90

M90*2

90

90.2

15

23

100

M100*2

100

100.2

15

24

110

M110*2

110

110.2

15

25

120

M120*2

120

120.2

15

25

130

M150*2

150

150.2

15

25

160
