Polyamide Dome Cap Cord Connector (NPT Thread)

Product details

■ Characteristics:
● Material: Sealing Nut, Locknut & Body are made from UL-certified nylon 66, 94V-2 (94V-0 optional).
● Seal & O-ring: Made from oil resistant NBR (weather resistant EPDM, Natural Rubber or Silicone optional).
● Thread System: According to ANSI/ASME B1.20.1.
● Standard Colors: Grey RAL7035, black RAL9005 (other colors like grey RAL7005, grey RAL7001, blue RAL5012, orange RAL6018, green RAL2004 are also available on request).
● Protection Degree: Up to IP68 (assembled together with O-ring within the cable range).
● Operation Temperature: Static: -40℃ to 100℃, short-term: 120℃. Dynamic: -20℃ to 80℃, short-term: 100℃.

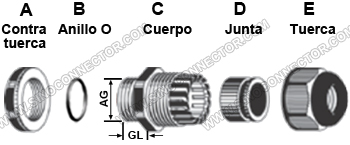

● How to use: Mount gland to pre-drilled panel hole, use locknut to fix gland on board, insert the cables in the seal and then tighten up the sealing nut to hold cables in position.
■ Applications:
Used for fixing cables to provide effective protection against dust, water, oil, acid, alkaline, alcohol, solvents in the fields of electrical and electronic technologies, machineries, telecommunications, wireless networking ODUs, power supplies, switches, junction boxes, solar PV modules, Inverters, lightings, displays, traffics, signals, surveillance cameras, plant engineerings, installation and other instruments, etc. Innovative design for the Seal and Claw, wide clamping range, strong resistence against the tensile strength and thus it can protect cables effectively.
■ Specifications:

Thread	Cable Range		AG (mm)	Panel Mounting Hole (mm)	GL (mm)	H (mm)	Spanner (mm)
Thread	Min.(mm)	Max.(mm)	AG (mm)	Panel Mounting Hole (mm)	GL (mm)	H (mm)	Spanner (mm)
NPT1/4"	3	6.5	13.7	13.7-14	8	22	15/16
NPT1/4"	2	5	13.7	13.7-14	8	22	15/16
NPT1/4"	4	8	13.7	13.7-14	8	24	19
NPT3/8"	4	8	17	17-17.3	15	26	19
NPT3/8"	2	6	17	17-17.3	15	26	19
NPT3/8"	5	10	17	17-17.3	15	26	22
NPT1/2"	6	12	21.2	21.2-21.5	13	30	24
NPT1/2"	5	9	21.2	21.2-21.5	13	30	24
NPT1/2"	10	14	21.2	21.2-21.5	13	30	27
NPT1/2"	7	12	21.2	21.2-21.5	13	30	27
NPT3/4"	13	18	26.2	26.2-26.5	15	37	33
NPT3/4"	9	16	26.2	26.2-26.5	15	37	33
NPT1"	18	25	33.3	33.3-33.6	16	40	41
NPT1"	13	20	33.3	33.3-33.6	16	40	41
NPT1-1/4"	18	25	42	42-42.3	18	40	42/46
NPT1-1/4"	13	20	42	42-42.3	18	40	42/46
NPT1-1/2"	22	32	48	48-48.3	15	48	52/53
NPT1-1/2"	20	26	48	48-48.3	15	48	52/53
