Home > Products > Polyamide Threaded Blind Plugs (PG Thread)

Polyamide Threaded Blind Plugs (PG Thread)

Product details

■ Characteristics:
● Material: Made from UL-certified nylon 66, 94V-2 (94V-0 optional).
● Thread System: According to the Germany standard DIN40430.
● Standard Colors: Grey RAL7035, black RAL9005 (other colors are also available on request).
● Protection Degree: Up to IP54.
● Protection Degree: Up to IP68 (only if assembled with the Washer on the very plane surface).
● Operation Temperature: Static: -40℃ to 100℃, short-term: 120℃. Dynamic: -20℃ to 80℃, short-term: 100℃.
■ Aplicacones:
For spare holes. Mainly used where existing threaded holes need to be closed to protect against water, dust, etc, but assembled with locknuts for closing the unthreaded holes.
■ Specifications:

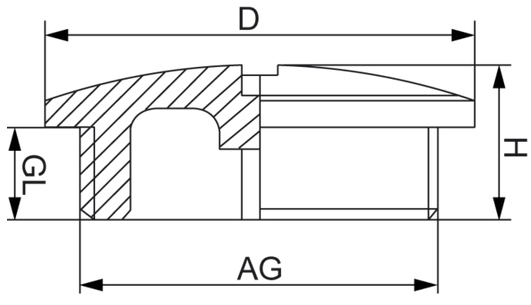

Thread	AG (mm)	Panel Mounting Hole (mm)	GL (mm)	H (mm)	D (mm)
Thread	AG (mm)	Panel Mounting Hole (mm)	GL (mm)	H (mm)	D (mm)
PG7	12.5	12.7	8.5	12.5	15
PG9	15.2	15.4	8.5	13	19
PG11	18.6	18.8	9	13	22
PG13.5	20.4	20.6	9	13	25
PG16	22.5	22.7	10.5	15	27
PG21	28.3	28.5	8.5	13.5	33
PG29	37	37.2	11.5	16	44
PG36	47	47.2	13.5	18	55
PG42	54	54.2	13.5	18.5	62
PG48	59.3	59.5	14.5	19.5	68
