Rimmed Wall Plugs

Product details




Characteristics:
Material: Impact resistant PE. Good elasticity and shock resistant.
Colors: Grey, white, other colors are also available on request.
The slimline plug geometry makes it easy to push the plug into the drill hole. For a fast and simple installation.
The structural design of anti-rotation lock prevents the plug rotating in the drill hole, thus guarantee a high level of installation safety.
Resistant to corrosion, chemical agents, climatic conditions and aging.
Temperate range: -40 to +80.
Applications:
Sprung anti-spin fins provide a two-way lock preventing spinning and loosening from overhead applications.
Ideal for many kinds of building materials: solid brick, plater walls, light board, concrete, aerated concrete, hole brick, sand lime brick, etc.
Ideal for both lightweight and medium-duty fixing applications: television sets, small appliances, lighting, sanitary ware, towel rack, mirrors, picture frames, washbasin, fire switch, curtain rods, shelving and cupboards, etc.
Suitable for many types of threaded screws including multi-purpose, general purpose, coach screws, etc.

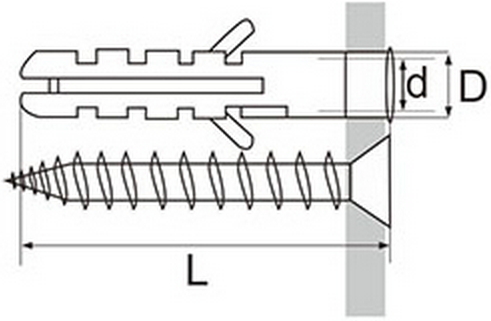

Specifications:

Item No.

L
(mm)

D
(mm)

d
(mm)

Screw Size
(mm)

Packing
(pcs)

RWP-5 25.3 5 3.5 φ3.0×25 100pcs/bag
RWP-6 29.1 5 4.8 φ4.0×30
RWP-7 35.0 7 5.3 φ4.0×35

RWP-8

38.0

8

5.8

φ4.0×40

RWP-10

47.8

10

8.3

φ4.0×45

RWP-12

57.5

12

10.0

φ6.0×50

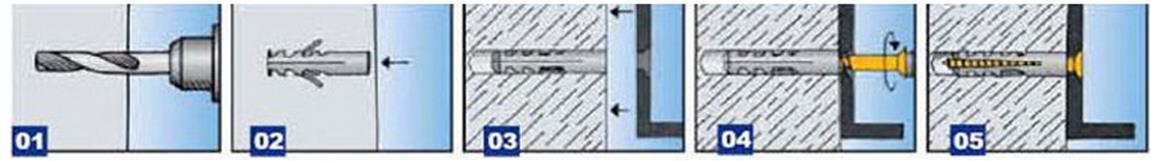

Installation guide:

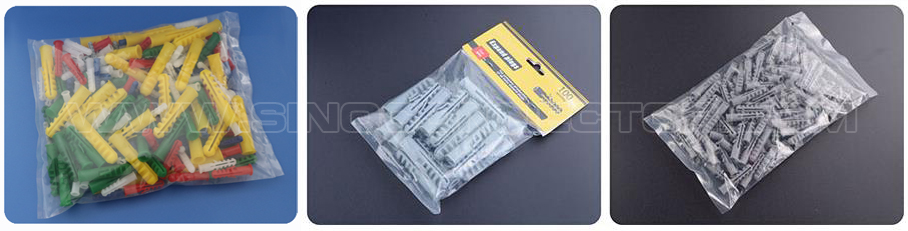

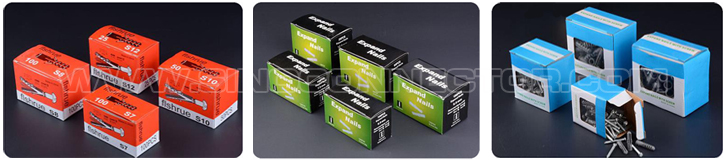

Value pack:
