Single Compression Cable Glands (PG & Metric Thread)

Product details

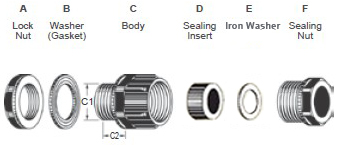

■ Characteristics:
● Material: Sealing Nut, Locknut and Body are made from UL-certified nylon 66, 94V-2.
● Seal: Made from oil resistant NBR or weather resistant EPDM.
● Washer: Made from Iron.
● PG Thread: According to the Germany standard DIN40430.
● Metric Thread: According to the European standard EN60423.
● Standard Colors: Grey RAL7035, black RAL9005, other colors are available on request.
● Protection Degree: Up to IP55 (assembled together with the Washer within the cable range).
● Operation Temperature: Static: -40℃ to 100℃, short-term: 120℃. Dynamic: -20℃ to 80℃, short-term: 100℃.
● How to use: Mount gland to pre-drilled panel hole, use locknut to fix gland on board, insert the cables in the seal and then tighten up the nut to hold cables in position.
■ Applications:
Used for fixing cables and provide the effecitve protection against dust, water, acid, alcohol,oil penetrating the electrical distribution box, electromechanical control panel and other instruments.
■ Specifications:

Thread	Cable Range		C1 (mm)	C2 (mm)	Spanner (mm)
Thread	Min.(mm)	Max.(mm)	C1 (mm)	C2 (mm)	Spanner (mm)
PG7	5	7	12.5	8	19/13
PG9	5	9	15.2	8	22/16
PG11	8	10	18.6	8	24/19
PG13.5	9	12	20.4	9	26/21
PG16	11	14	22.5	11	30/23
PG21	15	19	28.3	11	36/30
PG29	22	27	37.0	11	46/40
PG36	26	33	47.0	13	56/50
PG42	30	38	54.0	14	65/55
PG48	40	45	59.3	14	70/60

Thread	Cable Range		C1 (mm)	C2 (mm)	Spanner (mm)
Thread	Min.(mm)	Max.(mm)	C1 (mm)	C2 (mm)	Spanner (mm)
M12	5	7	12.0	8	19/13
M16	5	9	16.0	8	22/16
M18	8	10	18.0	8	24/19
M20	9	12	20.0	9	26/21
M22	11	14	22.0	11	30/23
M25	13	18	25.0	11	33/29
M30	18	25	30.0	11	37/35
M32	18	25	32.0	11	37/35
M36	22	27	36.0	11	46/40
M40	26	33	40.0	13	52/50
M50	30	38	50.0	14	65/55
M63	40	45	63.0	14	70/60
