Stainless Steel Ball Lock Zip Ties

Product details

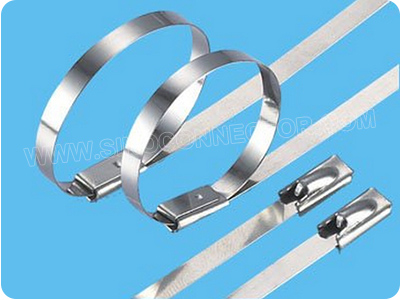

Stainless Steel Ball Lock Zip Ties


Characteristics:
Material: Non-magnetic Stainless Steel (301-304-316).
Operating Temperature: -80 ℃ to 500 ℃.
Features:
(1)
Strong self-locking mechanism (stainless steel ball), with low insertion force..
(2)
Fast, easy and reliable installation..
(3)
Uncoated version suitable for high temperature environments.
(4) Grades of non-magnetic stainless steel: 301 grade for indoor and dry environments; 304 grades for standard applications and 316 grade for corrosive and harsh environments .
Applications:
Used for hazardous areas such as petrochemical and food processing industries, power stations, mining, shipbuilding, offshore and other aggressive environments. It is Anti-corrosive, radiate and fire resistant.

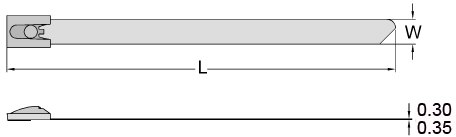

Specifications:

Item No.

Length (L)

Width (W)

Thickness

Max. Bundle Dia.

Min. Tensile Strength

Packing

mm (inch)

mm (inch)

mm

mm (inch)

lbs (N)

(pcs)

SSCT-12x200

200 (7.9")

12 (0.47")

0.30

50 (1.97")

562~652 (2500~2900)

100

SSCT-12x250

250 (9.8")

65 (2.56")

SSCT-12x300

300 (11.8")

82 (3.23")

SSCT-12x350

350 (13.8")

90 (3.54")

SSCT-12x400

400 (15.8")

105 (4.14")

SSCT-12x450

450 (17.8")

130 (5.12")

SSCT-12x500

500 (19.7")

140 (5.51")

SSCT-12x550

550 (21.7")

162 (6.38")

SSCT-12x600

600 (23.7")

185 (7.28")

SSCT-12x700

700 (27.6")

205 (8.07")

SSCT-12x750

750 (29.6")

223 (8.78")

SSCT-12x800

800 (31.5")

235 (9.25")

SSCT-12x850

850 (33.5")

250 (9.84")

SSCT-12x900

900 (35.4")

260 (10.24")

SSCT-12x950

950 (37.4")

272 (10.71")

SSCT-12x1000

1000 (39.4")

290 (11.42")

SSCT-15x200

200 (7.9")

15 (0.59")

0.35

50 (1.97")

720~809 (3200~3600)

50

SSCT-15x250

250 (9.8")

65 (2.56")

SSCT-15x300

300 (11.8")

82 (3.23")

SSCT-15x350

350 (13.8")

90 (3.54")

SSCT-15x400

400 (15.8")

105 (4.14")

SSCT-15x450

450 (17.8")

130 (5.12")

SSCT-15x500

500 (19.7")

140 (5.51")

SSCT-15x600

600 (23.7")

185 (7.28")

SSCT-15x700

700 (27.6")

205 (8.07")

SSCT-15x800

800 (31.5")

235 (9.25")

SSCT-15x900

900 (35.4")

260 (10.24")

SSCT-15x1000

1000 (39.4")

290 (11.42")
