Home > Products > Stainless Steel Cable Glands with Flex Protector (PG Thread)

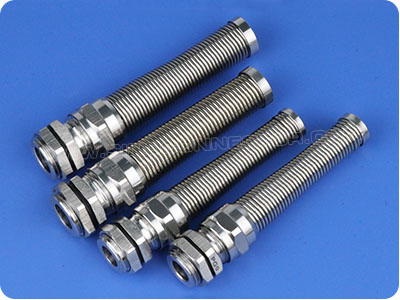

Stainless Steel Cable Glands with Flex Protector (PG Thread)

Product details

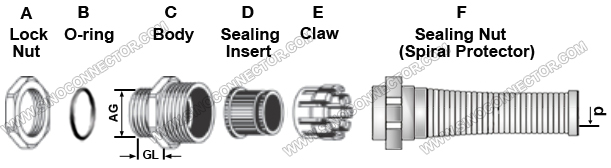

■ Characteristics:
● Material: Locknut, Body, Sealing Nut (Spiral Spring) are made from Stainless Steel SS304, SS316 or SS316L.
● Claw: Made from UL-certified nylon 66, 94V-2 (contact us for 94V-0 material).
● Sealing Insert & O-ring: Made in oil resistant NBR (also available in EPDM, Viton Rubber or Silicone Rubber).
● PG Thread: According to the Germany standard DIN40430.
● Standard Color: Metallic silver.
● Protection Degree: Up to IP68 (only if the cable is within the specific clamping range and assemble the O-ring).
● Operation Temperature: Static: -40℃ to 100℃, short-term: 120℃. Dynamic: -20℃ to 80℃, short-term: 100℃.
■ Functions & Applications:
Designed with anti-bending spiral spring, stainless steel cable glands with flex protector limit the cable bending to avoid excessive twist and protect the cable jacket against break at the bending point to reduce the risk of electric leakage, it can meet a variety of electrical requirements in various environments. With their outstanding ability in weather resistance, strong tensile strength, high watertight performance, high security & stability, such stainless steel spiral cable glands are the best cable entry systems widely used for connecting and fastening flexible cables on hand-held equipments, moving machineries, telecommunications, network communication, automatic control, power supplies, switches, motors, distribution boxes, solar PV modules, Inverters, lightings, displays, traffics, signals, surveillance cameras, plant engineerings, meters and instruments, etc.
■ Specifications:

Thread

Cable Range

AG
(mm)

Panel Mounting Hole
(mm)

GL
(mm)

H
(mm)

d
(mm)

Spanner
(mm)

Min.(mm)

Max.(mm)

PG7

3

6.5

12.5

12.5-12.8

7

55

6.8

14

PG9

4

8

15.2

15.2-15.5

8

66

8.2

19

PG11

5

10

18.6

18.6-18.9

8

77

10.3

20

PG13.5

6

12

20.4

20.4-20.7

8

88

12.3

22

PG16

10

14

22.5

22.5-22.8

8

98

14.3

24

PG21

13

18

28.3

28.3-28.6

9

111

18.4

32

PG29

18

25

37

37-37.3

9

122

25.4

40

PG36

25

33

47

47-47.3

10

132

33.4

50

PG42

32

38

54

54-54.3

11

140

38.4

55
