Stainless Steel Cable Ties (Ladder Multi-Ball Lock Type)

Product details

■ Characteristics:
● Material: Non-magnetic Stainless Steel (301-304-316).
● Operating Temperature: -80 ℃ to 500 ℃.
● Features:
(1) Strong self-locking mechanism (ratchet and pawl) saves installation time..
(2) Large slot at the end, allows the use of hook-type tool..
(3) Uncoated version suitable for high temperature environments.
(4) Grades of non-magnetic stainless steel: 301 grade for indoor and dry environments; 304 grades for standard applications and 316 grade for corrosive and harsh environments .
■ Applications:
Used for hazardous areas such as petrochemical and food processing industries, power stations, mining, shipbuilding, offshore and other aggressive environments. It is Anti-corrosive, radiate and fire resistant.
■ Specifications:

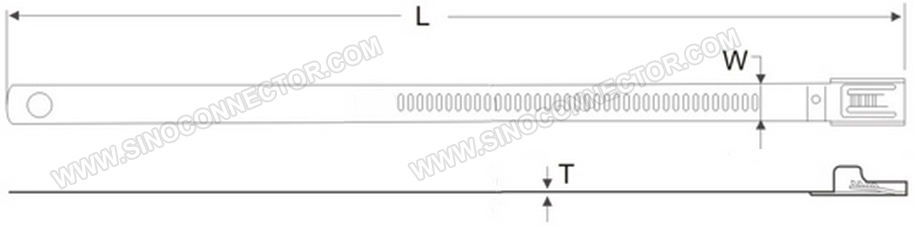

Item No.	Length (L)	Width (W)	Thickness	Max.Bundle Dia.	Min. Tensile Strength	Packing
Item No.	mm (inch)	mm (inch)	mm	mm (inch)	lbs (N)	(pcs)
SSCT-7x150	150 (5.9")	7.0 (0.28")	0.25	35 (1.38")	150 (660)	100
SSCT-7x200	200 (7.9")			50 (1.97")
SSCT-7x250	250 (9.8")			65 (2.56")
SSCT-7x300	300 (11.8")			82 (3.23")
SSCT-7x350	350 (13.8")			90 (3.54")
SSCT-7x400	400 (15.8")			105 (4.14")
SSCT-7x450	450 (17.8")			130 (5.12")
SSCT-7x500	500 (19.7")			140 (5.51")
SSCT-7x600	600 (23.7")			185 (7.28")
SSCT-7x700	700 (27.6")			205 (8.07")
SSCT-7x800	800 (31.5")			235 (9.25")
SSCT-12x150	150 (5.9")	12.0 (0.47")	0.25	35 (1.38")	255 (1120)	50
SSCT-12x200	200 (7.9")			50 (1.97")
SSCT-12x250	250 (9.8")			65 (2.56")
SSCT-12x300	300 (11.8")			82 (3.23")
SSCT-12x350	350 (13.8")			90 (3.54")
SSCT-12x400	400 (15.8")			105 (4.14")
SSCT-12x450	450 (17.8")			130 (5.12")
SSCT-12x500	500 (19.7")			140 (5.51")
SSCT-12x600	600 (23.7")			185 (7.28")
SSCT-12x700	700 (27.6")			205 (8.07")
SSCT-12x800	800 (31.5")			235 (9.25")
