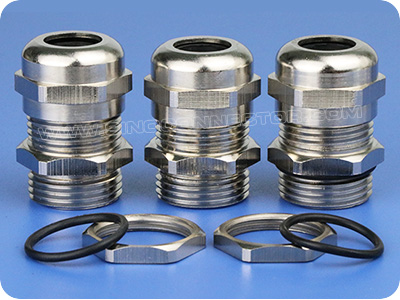

Watertight Metallic Cable Screw Gland (Short PG Thread)

Product details

■ Characteristics:
● Material: Sealing Nut, Locknut and Body are made from Nickel-plated Brass.
● Claw: Made from UL-certified nylon 66, 94V-2 (94V-0 optional).
● Seal & O-ring: Made from oil resistant NBR (weather resistant EPDM,Natural Rubber or Silicone optional).
● Thread System: According to the Germany standard DIN40430.
● Standard Colors: Metallic silver.
● Protection Degree: Up to IP68 (assembled together with the O-ring within the cable range).
● Operation Temperature: Static: -40℃ to 100℃, short-term: 120℃. Dynamic: -20℃ to 80℃, short-term: 100℃.
● How to use: Mount gland to pre-drilled panel hole, use locknut to fix gland on board, insert the cables in the seal and then tighten up the sealing nut to hold cables in position.
■ Applications:
A metal cable gland (also called "brass cable gland") is a kind of entry device that allows users to pass a cable, wire or tube into an enclosure while providing good strain relief and sealing out dust, dirt and liquids. The metal cable gland has a wide variety of sizes available from very small size (PG7/M8) to very large size (PG48/M150).
The cable glands are divided into different types according to different materials: plastic cable gland, brass cable gland, stainless steel cable gland, aluminum cable gland, etc. The cable glands have different types according to different functions: single-hole cable gland, multi-hole entry cable gland, watertight cable gland, armored cable gland, explosionproof cable gland, EMC cable gland, double compression cable gland, single compression cable gland, etc. Our series of cable glands include plastic, brass & stainless steel varieties with PG, Metric, NPT and G threads, they are rated up to IP68 and IP69K that can be used permanently under water up to 5 atmospheres, the sealing around the cable is achieved through the sealing O-ring or gasket.
All the sizes are available in short thread version & extended thread version as per customer's need. Metal brass cable glands are available in a wide variety of sizes and shapes, they can be utilized both for armoured and unarmoured cables, our stainless steel cable glands or cable gands with nickel plating ensure that they can stand harsh environmental conditions. They are widely used in many industrial fields such as industrial machines, electrical equipment, telecommunications, new energy appliances. The cable glands are widely applied in the harsh environment with heavy pollution elements such as oil, dust, moisture, so their sealing protection grade IP68 & IP69K is very important to ensure the equipment inner space without influence.
■ Specifications:

Thread	Cable Range		C1 (mm)	Panel Mounting Hole (mm)	C2 (mm)	H (mm)	Spanner (mm)
Thread	Min.(mm)	Max.(mm)	C1 (mm)	Panel Mounting Hole (mm)	C2 (mm)	H (mm)	Spanner (mm)
PG7	3	6.5	12.5	12.7	5	19	14
PG7	2	5	12.5	12.7	5	19	14
PG9	4	8	15.2	15.4	6	20	17
PG9	2	6	15.2	15.4	6	20	17
PG11	5	10	18.6	18.8	6	21	20
PG11	3	7	18.6	18.8	6	21	20
PG13.5	6	12	20.4	20.6	6.5	22	22
PG13.5	5	9	20.4	20.6	6.5	22	2
PG16	10	14	22.5	22.7	6.5	23	24
PG16	7	12	22.5	22.7	6.5	23	24
PG21	13	18	28.3	28.5	7	25	30
PG21	9	16	28.3	28.5	7	25	30
PG29	18	25	37	37.2	8	29	40
PG29	13	20	37	37.2	8	29	40
PG36	22	32	47	47.2	8	35	50
PG36	20	26	47	47.2	8	35	50
PG42	32	38	54	54.2	9	37	57
PG42	25	31	54	54.2	9	37	57
PG48	37	44	59.3	59.5	10	38	64
PG48	29	35	59.3	59.5	10	38	64
