Угловые кабельные вводы разделенного типа с защитой кабеля (метрическая резьба)

Информация о продукте

■ Characteristics:

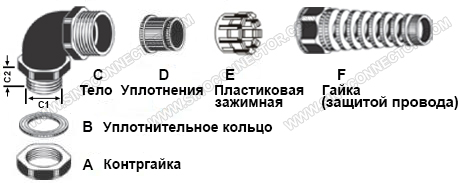

● Material: Sealing Nut, Locknut & Body are made from UL-certified nylon 66, 94V-2 (94V-0 optional).
● Seal & Washer: Made from weather resistant EPDM rubber (available in high temperature-resistant EPDM rubber, acid or alkali-resistant EPDM, etc).
● Thread System: According to the European standard EN60423.
● Standard Colors: Grey RAL7035, black RAL9005, other colors are also available on request.
● Protection Degree: Up to IP68 (assembled together with Washer within the cable range).
● Operation Temperature: Static: -40℃ to 100℃, short-term: 120℃. Dynamic: -20℃ to 80℃, short-term: 100℃.
● How to use: Mount gland to pre-drilled panel hole, use locknut to fix gland on board, insert the cables in the seal and then tighten up the sealing nut to hold cables in position.
■ Functions & Applications:
The claws and seals of unique design, sealing nut with flange has a“click”sound and re-open, can hold cables firmly and provide a wider cable range,it limits the cable bending to avoid excessive twist and protect the cable jacket against break at the bending point to reduce the risk of electric leakage, it can meet a variety of electrical requirements in various environments. With their outstanding ability in weather resistance, strong tensile strength, high watertight & airtight performance and high security & stability, the 90° right angle cable glands with strain relief are the best cable entry systems widely used for connecting and fastening flexible cables on hand-held equipments, moving machineries, telecommunications, network communication, automatic control, power supplies, switches, motors, distribution boxes, solar PV modules, Inverters, lightings, displays, traffics, signals, surveillance cameras, plant engineerings, meters and instruments, etc.
■ Specifications:

Thread	Cable Range		C1 (mm)	Panel Mounting Hole (mm)	C2 (mm)	Spanner A/F (mm)	Packing (pcs)
Thread	Min. (mm)	Max. (mm)	C1 (mm)	Panel Mounting Hole (mm)	C2 (mm)	Spanner A/F (mm)	Packing (pcs)
M16*1.5	4	7	16	16.2	10	22/22	50
M16*1.5	6	10	16	16.2	10	22/22	50
M20*1.5	6	11	20	20.2	15	27/27	50
M20*1.5	9	14	20	20.2	15	27/27	50
M25*1.5	10	16	25	25.2	15	33/33	50
M25*1.5	13	18	25	25.2	15	33/33	50
